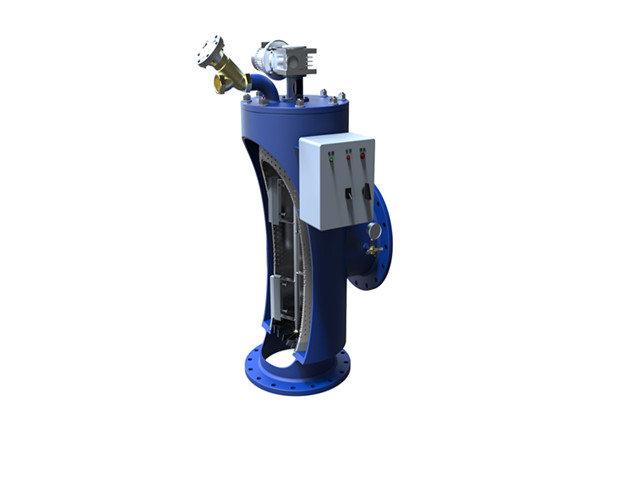

TPBC Brush Self-cleaning Filter

Capactiy: 30 set/month

Cleaning type: brush

Slot range: 50-4000 micron

Material: SS304, SS316

Including Y type, L type filter

SHARE :

Details

Product Introduction：

TPBC series self-cleaning filter (TPBC Filter for short), is the high efficiency brushing self-cleaning filter, removing impurities particles on the filter element surface by mechanical brushing and continuously filtering on-line. TPBC filter is designed for fine and accurate filtration ranging from 50-500 micron. It can avoids extruding and breaking the impurities and is capable of the filtration for water and viscous liquid.

Products are widely used in water treatment, paper-making, petroleum, bio-pharmaceuticals, printing ink, grease, food and beverage, etc.

The water to be treated enters the filter element through the water inlet and passes from the inside to the outside. When the pressure difference between the filter inlet and outlet reaches a preset value(or reaches the set time value), the filter will start the self-cleaning process, and the entire self-cleaning process includes two step:1)open the drain value located on the upper end cover of the filter 2)the motoe drives the stainless steel wire brush inside the filter to rotate,and the impurities captured by the filter are thus brushed by the steel brush and discharge from the drain value.The entire cleaning process takes about 15-60seconds.The system keeps flowing during cleaning.It can be controlled entire operation of the filter is controlled by a control box equipped.

Specifications

TPBC Brush Self-cleaning Filter

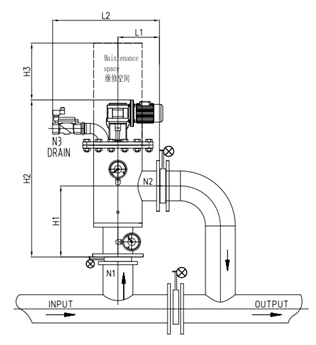

Model	Water inlet/outlet（mm）	Filter area（c㎡）	Capacity (woven mesh/V-SLOT) (m³/h)	H1	H2	H3	L1	L2
TPBC-104	100	3725	100/80	260	950	400	240	600
TPBC-106	150	5640	160/130	370	1250	400	300	660
TPBC-108	200	6330	300/220	400	1250	700	325	690
TPBC-110	250	6330	450/220	500	1350	700	325	690
TPBC-112	300	8000	650/320	600	1380	1000	325	690
TPBC-114	350	8000	900/450	600	1380	1000	325	690
TPBC-116	400	12150	1100/600	650	1420	1200	450	850

Main Features:

1. Automatic 24-hour on-line filtration, no frequent changing out and cleaning
2. No disposable filter media consumption, save filter media cost and environment cost
3. Stainless steel brush, good impurity removing performance, avoidimpuritiesextruding and breaking
4. Top quality V-SLOT filter element, accurate slots, extremely smooth, easy to brush, high strength and long service life
5. Very low pressure drop, stable flowrate, save energy consumption, good for process stability
6. Low cleaning water consumption, 5% of the filtered water amount, 15~30 s washing time, continuously filtering on-line
