Model:TPIST
Price: case by case
Materials: SS304, SS316L, customer-made
Packing: Wooden Boxes
Place of Origin: Chengdu, China
Product introduction:
Based on the international advanced biological treatment technology, summarizing the operating experience of the existing domestic sewage treatment equipment,we have developed a series of integrated sewage treatment equipment,Which can remove BOD5, COD and NH3-N by integrated,with stable and reliable technical performance.Good treatment effect,Small investment,Automtic operation, Convenient maintenance operation and Small volume, etc , the shelter does not need to be built, and heat preservation are not required.
The equipment is suitable for residential sewage, similar to residential quarters, villages, office buildings, shopping malls, hotels, restaurants, nursing homes, institutions, schools, military units, hospitals, highways, railways, factories, mines, tourist attractions, etc. And some samll and medium-sized industrial organic wastewater treatment and rensue ,such as slaughter, aquatic products processing and food.
According to different inlet water quality and outlet water quality standards, the integrated process flow and equipment configuration will be different, as follows: TPPT, TPMBBR, TPMBR three series of products for reference. At the same time, according to the needs of users, we can customize the integrated sewage treatment equipment suitable for the user's watewater characteristics.

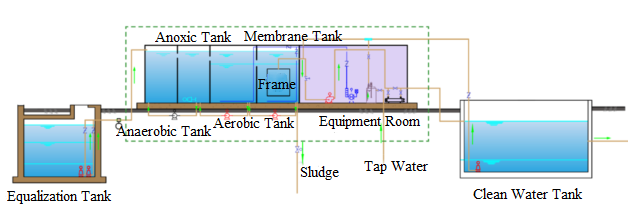

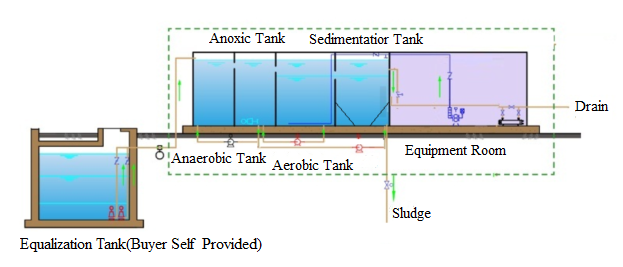

Flow Chart
TPPT Inlet And Outlet Water Quality (For reference):
|
Item |
BOD5（mg/L） |
CODCr（mg/L） |
SS（mg/L） |
NH3-N（mg/L） |
TP（mg/L） |
|
Inlet |
150 |
350 |
200 |
30 |
3 |
|
Outlet |
30 |
100 |
70 |
15 |
0.5 |
TPMBBR Inlet And Outlet Water Quality (For reference):
|
Item |
BOD5（mg/L） |
CODCr（mg/L） |
SS（mg/L） |
NH3-N（mg/L） |
TP（mg/L） |
|
Inlet |
150 |
350 |
200 |
30 |
3 |
|
Outlet |
10 |
50 |
10 |
5（8） |
0.5 |
TPMBR Inlet And Outlet Water Quality (For reference):
|
Item |
BOD5（mg/L） |
CODCr（mg/L） |
SS（mg/L） |
NH3-N（mg/L） |
TP（mg/L） |
|
Inlet |
150 |
350 |
200 |
30 |
3 |
|
Outlet |
10 |
≤50 |
≤10 |
5（8） |
0.5 |
Specifications:
|
Model |
Capacity(m3/d) |
customer requirements) |
|
TPPT/MBBR/MBR-10 |
10 |
|
|
TPPT/MBBR/MBR-20 |
20 |
|
|
TPPT/MBBR/MBR-50 |
50 |
|
|
TPPT/MBBR/MBR-80 |
80 |
|
|
TPPT/MBBR/MBR-100 |
100 |
|
|
TPPT/MBBR/MBR-150 |
150 |
|
|
TPPT/MBBR/MBR-200 |
200 |
|
|
TPPT/MBBR/MBR-300 |
300 |
Note: According
to the customer's inlet and outlet water quality, equipment parameters and
configurations are different.
Main
Features:
1.With nitrogen
and phosphorus removal ability and equipment structure adjustability which can
achieve different wastewater treatment.

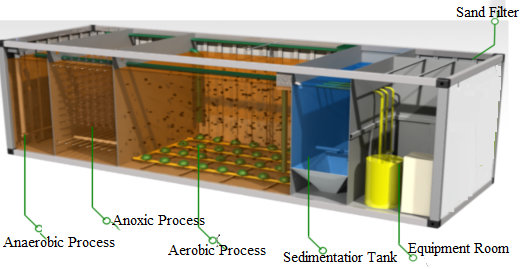

2.The media in
the contact oxidation tank is mostly combined soft media, light weight, high
strength, stable physical and chemical properties.The specific surface area is
larger, the biofilm adhesion ability is strong, and the contact efficiency
between the sewage and the biofilm is high.
3.In the contact
oxidation tank, an aerator is used for blast aeration, so that the fiber bundle
is continuously floated and the aeration is uniform.Good for microbial growth
and maturity, with the characteristics of activated sludge method.
4. The outlet
quality is stable, the sludge production is small and easy to handle.
5. Submersible
pumps can be placed in the equipment, reducing engineering investment.
6.The equipment
can be located on the ground, but also buried underground, meanwhile the upper
cover can be used for greening.
7.Can achieve
automatic control, simple management.
8.Can be used for mobile integrated sewage treatment equipment, for multi-point use.
