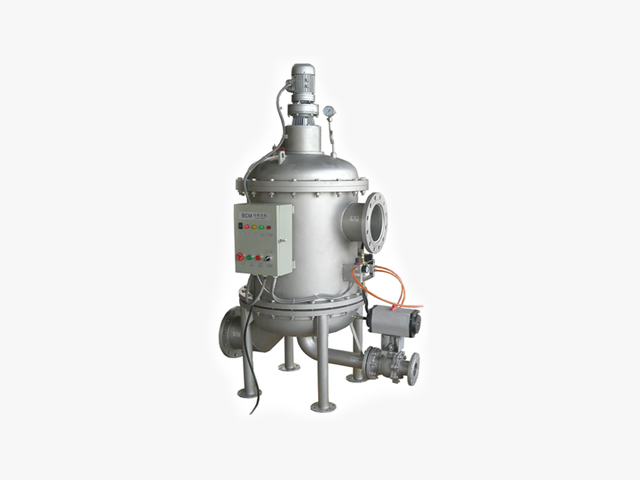

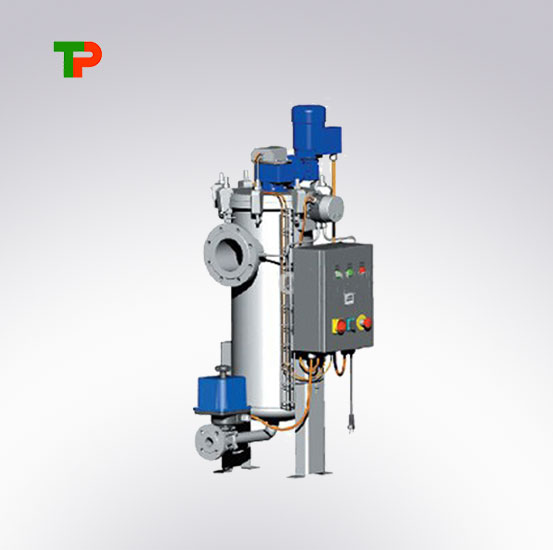

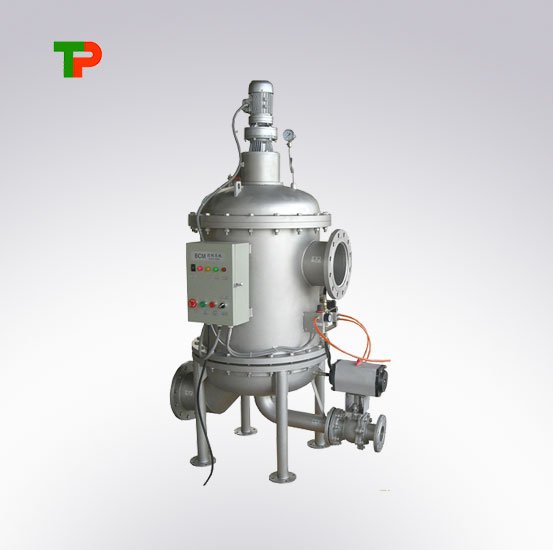

Product Introduction
TPB filters have rigid and durable V-SLOT filter cartridge, with uniform surface crack width，single large filter area, precision filtration features, high reliability features. It applies to the filtration of dirty water containing oil sludge type impurities, soft and viscous impurities, high content impurities, small amount of hairs and fibers. It is widely used in water treatment, steel, pulp and paper, mining, petro-chemical, machining, municipal, irrigation etc.
Main Features
1. Automatic continuous online filtration.
2. Large filtration area, low surface flow velocity and low pressure loss.
3. Top quality V-SLOT filter element, accurate slots, extremely smooth, easy to scrap
4. High intensity structure, high efficient backwash and time saving.
5. High reliability system, low operation cost and simple maintenance.
Main technical parameters
|
Model |
TPB11 |
TPB22 |
TPB34 |
TPB75 |
TPB100 |
TPB136 |
|
Applicable liquid |
Viscosity(1-40cp) |
|||||
|
Flow rate(m³/h) |
17-8000 |
|||||
|
Filtration Precision |
50-2000μm |
|||||
|
Std design P |
0.6MPa, 1.0MPa(High design pressure available) |
|||||
|
Designed temp. |
0-95℃(Determined by the seal material) |
|||||
|
Filter Element |
V-SLOT |
|||||
|
Housing material |
304.316L,CS |
|||||
|
Cleaning Start Mode |
Time or Pressure Drop |
|||||
*Above parameters only for reference, customized available for detailed requirements
