Product introduction

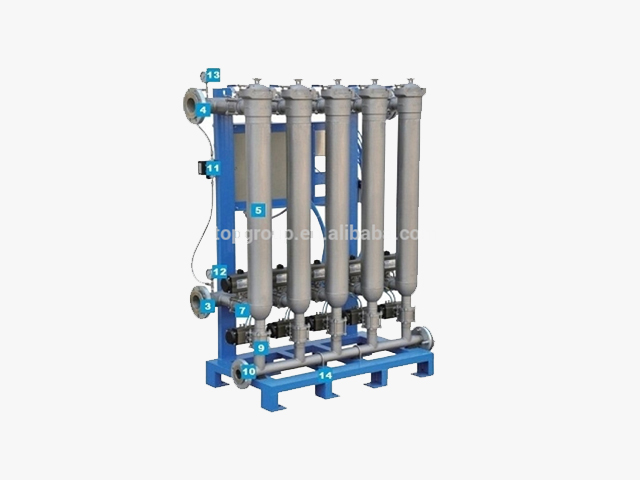

TPM Series modular self-cleaning filter (TPM Filter for short) is the automatic filtration system designed by TOP according to the modular design concept. Applicable industries: petrochemical industry, water treatment, papermaking etc.
Main Features
■ Low risk of downtime, small investment.
■ Without interrupting the filtering case, can maintenance the filter unit off-line one by one.
■ Top quality V-SLOT filter element, accurate slots, extremely smooth, easy to scrap
■ The filter element is very convenient to remove for cleaning
■ Backflushing through the valve switching, no complicated mechanical structure, easy to maintain.
Main technical parameters:
|
Model No |
TPM-I Filter |
TPM-I Filter |
|
Suitable liquid |
External solution |
External solution or gas |
|
Viscosity range |
<50cps |
<100cps |
|
Impurity content |
<300ppm |
|
|
Minimum inlet pressure |
>0.3MPa |
<0.3MPa |
|
Installation site |
after pumping |
Before the pump or after |
|
Filter fineness |
50-500um |
20-500um |
|
Standard design pressure |
1.6MPa,2.5MPa,4.0MPa |
|
*Above parameters only for reference, customized available for detailed requirements
