Capacity: 30 set/month
Material: SS304, SS316
Slot range: 50-4000 micron
Origin: China
Product Introduction:
TPAF800 series is hydrodynamic suction automatic self-cleaning filter, needn’t the energy from outside, filtration will not stop while back-cleaning. This equipment use the hydraulic motor to drive the cleaning parts to clean the impurity from the filter surface, we can provide 50μm--4000μm filter screen to match different working area. Now wildly used on cooling tower, water supplement system, air-condition system, direct current system water filtration, raw water filtration, seawater, underground water filtration, industrial circulating water filtration, agricultural irrigation, papermaking industry white water filtration and so on.

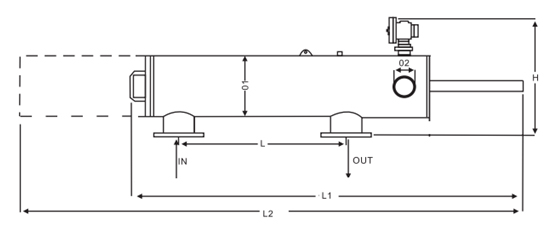

Specification:
|
TPAF800 suction Filter |
||||||||
|
Model |
Diameter(mm) |
Filter screen area（C㎡） |
Flow rate(woven mesh/wedge wire screen)（m³/h） |
Back washing water consumption（m³/h） |
H(mm) |
L(mm) |
L1(mm) |
L2(mm) |
|
TPAF803LOPR |
80 |
3725 |
50/50 |
25 |
573 |
450 |
1650 |
2005 |
|
TPAF804LOPR |
100 |
5640 |
80/80 |
25 |
573 |
900 |
2035 |
2775 |
|
TPAF806LOPR |
150 |
5640 |
150/150 |
25 |
654 |
900 |
2120 |
2750 |
|
TPAF806XLP |
150 |
8500 |
160/160 |
25 |
602 |
900 |
2520 |
3655 |
|
TPAF808PR |
200 |
5640 |
160/160 |
25 |
654 |
900 |
2325 |
3015 |
|
TPAF808LOPR |
200 |
8500 |
300/300 |
25 |
654 |
900 |
2715 |
3850 |
|
TPAF810PR |
250 |
8200 |
350/300 |
50 |
735 |
1100 |
2500 |
5500 |
|
TPAF810LOPR |
250 |
8500 |
400/320 |
25 |
665 |
900 |
2715 |
5500 |
|
TPAF810XLP |
250 |
11920 |
450/350 |
75 |
735 |
1100 |
3235 |
5500 |
|
TPAF812PR |
300 |
11920 |
600/350 |
75 |
735 |
1100 |
3235 |
5500 |
|
TPAF814PR |
350 |
13100 |
1000/550 |
75 |
780 |
1270 |
3235 |
5500 |
|
TPAF816PR |
400 |
13100 |
1200/550 |
75 |
780 |
1270 |
3235 |
5500 |
|
TPAF816XLR |
400 |
17320 |
1500/700 |
75 |
935 |
1270 |
3235 |
5500 |
Main Features:
1. Automatic 24-hour on-line filtration, no frequent changing out and cleaning.
2. No disposable filter media consumption, save filter media cost and environment cost.
3. Low pressure loss, equip filter screen which have larger filter area make the pressure loss lower.
4. Automatic self-cleaning without energy outside, filtration will not stop while the self-cleaning.
5. The secondary filtration, this equipment use the secondary stainless steel filter screen to filtration, first through the rough filter and then into the fine mesh.
6. Diversified control: filtration equipment self-cleaning can be controlled by pressure diff, time, manually. And Warning signal, PLC control as the optional.
