Product introduction

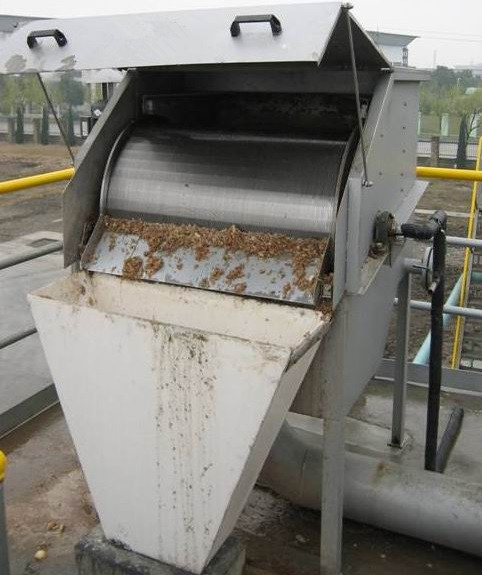

The TPI type inward water drum filter is one of the pretreatment solid separating devices used for small and medium wastewater treatment plants, and a device which can remove solid suspended matter continuously and effectively. In some wastewater treatment, 30% to 60% of the organic and inorganic solid suspended matters will be removed after filtered, which will reduce the subsequent workload greatly.

Range of application

The device is widely used in sewage treatment filed like papermaking, tanning, slaughtering, wine and food, chemical fiber, textile and other industries.

Working principle

Gear motor drive the drum screen, sewage flow through the inlet valve into the tank, water accumulated to filtering level. Clean water flow out from bottom of the filter and clean the screen simultaneously. Impurities with larger particle size than the slot were intercepted on the outer surface of the drum screen and move by the rotating drum into discharger, and filtered wastewater discharged by drain outlet.

Features and Advantages

1. The equipment are all made of stainless steel, corrosion resistance, compact structure, cover an area of an area small, easy installation .Can use direct expansion bolt, this equipment can not do groove. Inlet and outlet tubes are available.

2．The gate is inverted trapezoidal section, making the slag is not easy to jams mesh filters。

3．Controlled by control motor, according to the water flow can be to maintain the best working condition.

4．Special flusher device can brush away small amount of impurity on the surface of the paste on reseau, net tube after secondary rinse, can achieve the best effect of qing gate, at the same time set up a flusher, will be attached to mesh the dirt to wash.

Specification:
