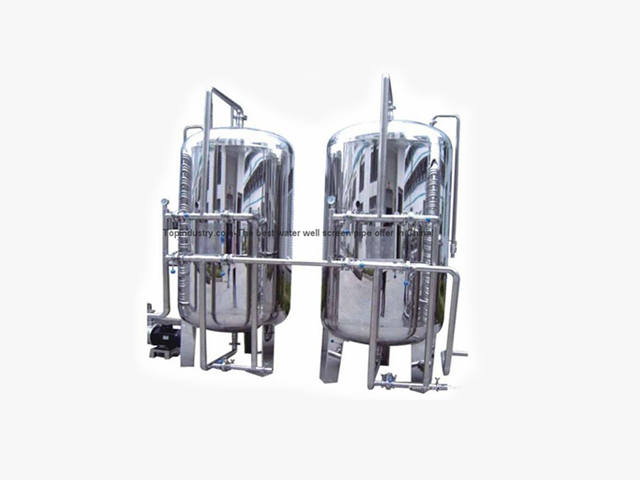

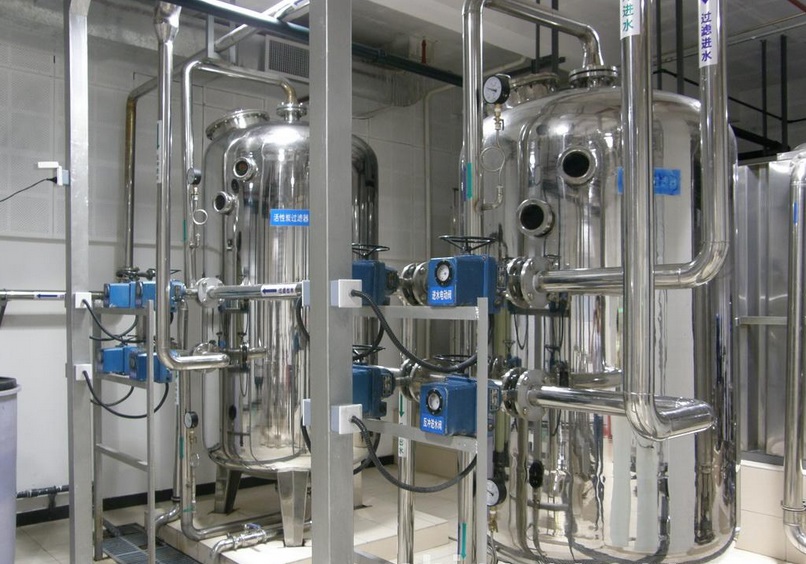

Activated carbon is a very fine carbon particles with great microporous in unit area, usually called capillary pore, the capillary has a strong adsorption capacity due to the surface area of the carbon particles, in full contact with impurities in water, these impurities can be adsorbed in the pores. The activated carbon filter is used for color and smell removal and get rid of colloid impurities in water.
USE：It is widely used in water pretreatment of household water and food industry, chemical, power and other industries.
Features
1.Easy operation, low maintenance
2.Effective for organic matter, oxide and metal ion
3.High effectiveness and compact structure
4.Optional mannual/automatic control
|
Model No. |
Flow rate (T/H) |
Working Pressure |
Operating Temperature |
Water distributor |
Material |
Silica/Carbon |
Column Size (mm) |
|
TPC-8 |
8 |
0.1MPa～0.6 Mpa |
Normal |
(up)：(screen mesh)，(branch-center) (down)： Filter nozzle |
SUS304SUS316Q235 |
Silica：1.3T Carbon：360KG |
Φ900X1500 |
|
TPC-10 |
10 |
Silica：1.6T Carbon：450KG |
Φ1000X1500 |
||||
|
TPC-15 |
15 |
Silica：2.3T Carbon：650KG |
Φ1200X1500 |
||||
|
TPC-20 |
20 |
Silica：3T Carbon：860KG |
Φ1400X1500 |
||||
|
TPC-30 |
30 |
Silica：3.5T Carbon：1T |
Φ1500X1500 |
||||
|
TPC-35 |
35 |
Silica：4T Carbon：1.2T |
Φ1600X1500 |
||||
|
TPC-40 |
40 |
Silica：5T Carbon：1.5T |
Φ1800X1500 |
||||
|
TPC-50 |
50 |
Silica：6T Carbon：1.8T |
Φ2000X1500 |
||||
|
TPC-60 |
60 |
Silica：7.5T Carbon：2.2T |
Φ2200X1500 |
||||
|
TPC-70 |
70 |
Silica：9T Carbon：2.5T |
Φ2400X1500 |
||||
|
TPC-75 |
75 |
Silica：9.7T Carbon：2.8T |
Φ2500X1500 |
*Above parameters only for reference, customized available for detailed requirements
