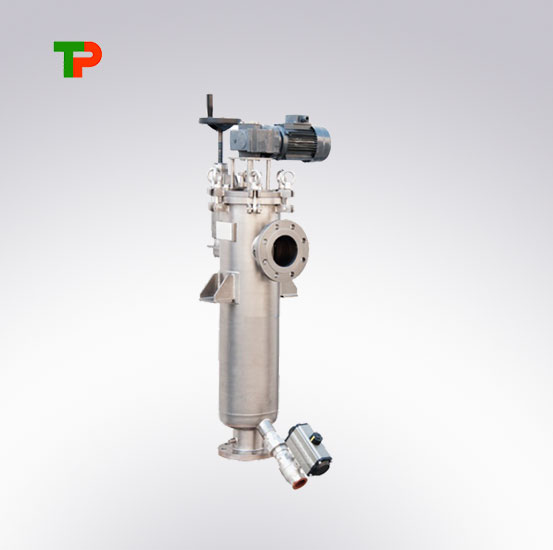

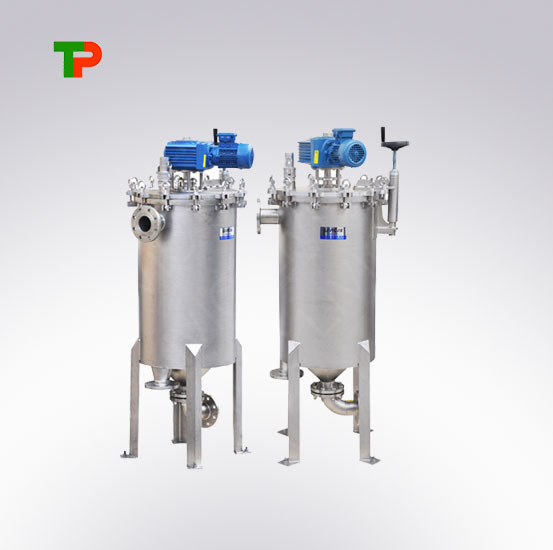

TPW Outside Scraping Self-cleaning Filter
Model:TPW
Price:Non - standard customized
Package: Wooden box
Place of Origin:China
Minimum order quantity:1 Set

SHARE :
Details



Product Introduction


TPW series self-cleaning filter (TPW Filter for short), is the high efficiency scraping self-cleaning filter removing the impurities particles on the filter element outside by mechanical scraping, it continuously filters on-line. TPW filter is designed for fine and accurate filtration ranging from20-500 micron. It can avoids extruding and breaking the impurities and is capable of the filtration for water and liquids viscosity up to 800000cps.

Products are widely used in water treatment, papermaking petroleum bio-pharmaceuticalsprinting ink, grease, food and beverage, etc.


Main Features


■Automatic 24-hour on-line filtration, no frequent changing out and cleaning
■No disposable filter media consumption, save filter media cost and environment cost
■adopt outside scraping, Stainless steel scraping blade, good impurity removing performance
■Top quality V-SLOT filter element, accurate slots, extremely smooth, easy to scrap
■Very low pressure drop, stable flowrate, save energy consumption
■Close filtration, no dangerout liquid leakage, good for safe production
■Discharge waste liquid with high impurity concentration, avoid valuable liquid loss

Main technical parameter

Model

TPW11

TPW22

TPW34

TPW75

TPW100

TPW136

Filter area(cm2)

0.11

0.22

0.34

0.75

1.00

1.36

Volume (L)

16

30

50

145

195

320

Inlet/Outlet (mm)

DN40-DN50

DN50-DN80

DN50-DN100

DN65-DN100

DN80-DN125

DN100-DN150

Drain outlet (mm)

DN40

DN50

Applicable liquid

Viscidity (<800000cps)Impurity<1000ppm

Filtration Precision

20-500μm

Cleaning pressure diff.

0.05MPa

Diff pressure switch

Differential pressure transmitter(DPT) or Differential pressure switch(DPS)

Gear motor

180W380V, IP55

Filter element type

V-SLOT, 316L/304

Housing material

316L/304/CS

Scraping blade material

304/316L

Seal material

NBR/VITON(FKM)

Discharging valve

Pneumatic ballvalve/ Electric ball valve

*Above parameters only for reference, customized available for detailed requirements
