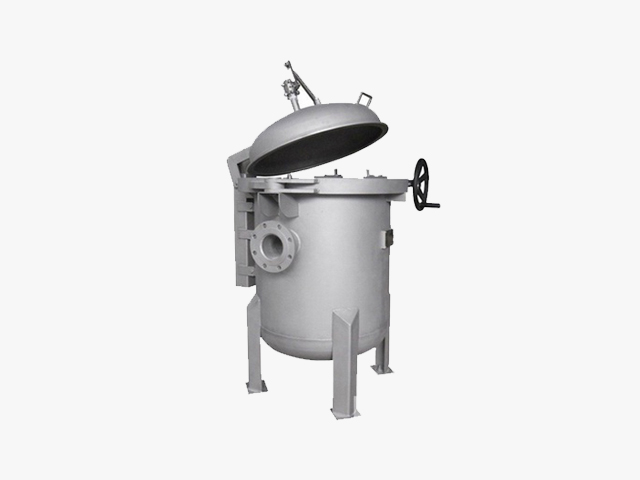

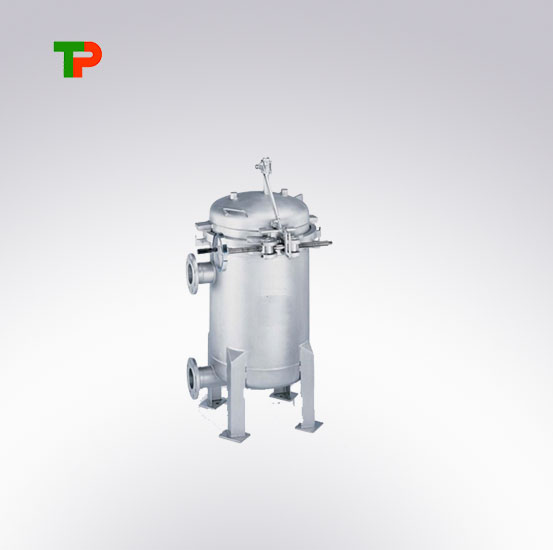

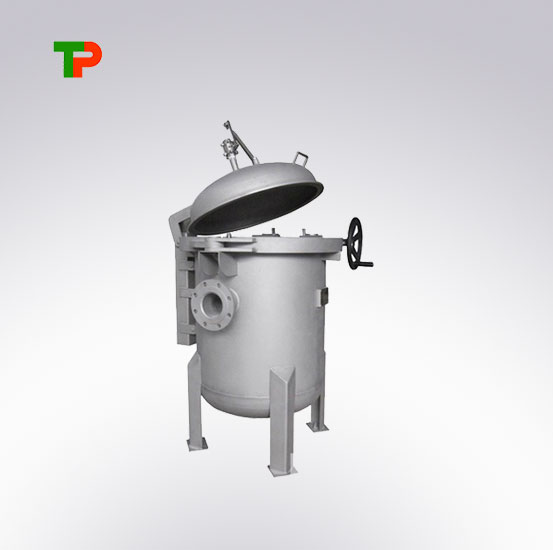

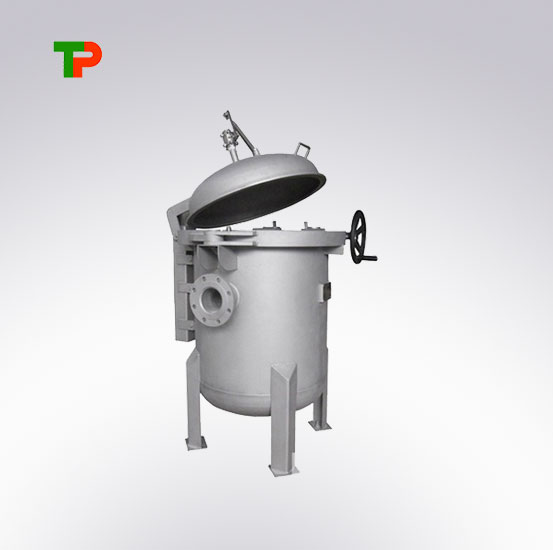

TPBQ Series quick-opening multi-bag filter
Model::TPBQ
Price:Non - standard customized
Package: Wooden box
Place of Origin:China
Minimum order quantity:1 Set

SHARE :
Details



Product Introduction


TPBQseries quick-open multi-bag filter(TPBQ filter for short)is particularly designed for end users caring about the operation efficience, safety and durability. It is very suitable for the filtration of high contaminant liquid, frequent filter bag change-out applications, or 24 hour continuous production which requires quick filter switching and cleaning. TPBQfilter is an excellent solution to greatly improve the filtration operation efficiency. It makes the filter change-out quicker and greatly reduces the labour intensity.


Main Features

n V-shape heavy duty quick-open clamp cover

n Open and close the filter within 20 seconds, change the filter bags immediately.

n Operate at the still position, no need to walk around the filter and fasten bolts and nuts symmetrically

n Interlock safety design makes sure the filter opened only after vented and pressure relieved

n Weight balance device allows the cover ti be stopped at any possible opening angle with on finger

n Open the cover vertically, save the footprint and installation cost

n Special wrench tool for easy bag fixing and change-out

n Shortest filter offline time and, improve  the production and reduce the operation cost

n Quality o-ring elastomer rubber, good sealing and long service life

n Made of quality stainless steel 304 and 316L, good chemical corrosion resistance

n Five types of inlet and outlet layout optional for easy pipeline design and installation

Main technical parameter

Model

TPBQ2

TPBQ3

TPBQ4

TPBQ6

TPBQ8

TPBQ12

Design pressure

MPa

1.0

1.0

1.0

1.0

0.7

0.7

Design temperature

0-250

Filter bag size

Mm

Φ178x813/Φ178x720

flowrate

M3/h

48

72

96

144

192

288

Filter bag quantity

2

3

4

6

8

12

Filter area

m2

1./2

1.5/3

2/4

3/6

4/8

6/12

Filter Rating

μm

1-2000

Housing material

304/316L

Seal material

NBR/EPDM/VITO/PTFE

Stand connecting

flange

Inlet/outlet

DN80/100

DN100/125

DN100/125

DN125/150

DN150/200

DN200/250

note

1.the design temperature is also determined by the seal material and the filter bag material

2.the typical flow rate for the clean filter at 10 micron, consider the filtration degree, viscosity and contaminant content when filtering the different liquid.

*Above parameters only for reference, customized available for detailed requirements
