Product Introduction

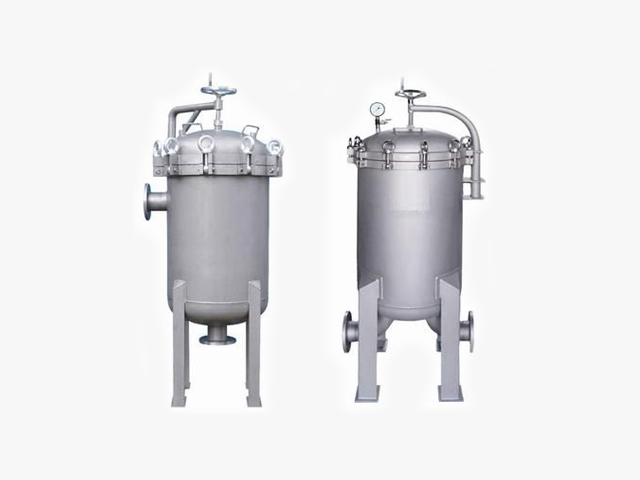

TPBM Series conventional multi-bag filter, for high flow rate and non-frequent bag replacement applications.
Multi-bag design,2 through to 12 bag housings available
Suitable for high dirty loading applications and high flow rate
Available in Type 304 or 316 stainless steel
Outstanding welding quality, durable and safe
High strength bolt and nut,corrosion resistance, durable and reliable.
Adjustable stainless steel mounting legs,simple installation
Working Principle
Process liquid enters filter housing from the inlet into the filter bag, particles larger than the filtration pore are blocked on the surface or inside the filter bag. Liquid pass across and goes to outlet. When the particles accumulated and increase the pressure drop to 0.05-0.1MPa, replace the clogged bag and continue filtering.
Main technical parameter
|
Main Model |
TPBM2 |
TPBM3 |
TPBM4 |
TPBM5 |
TPBM6 |
TPBM7 |
TPBM8 |
TPBM9 |
|
Design Pressure ( MPa ) |
0.6/1.0/1.6 |
|||||||
|
Design Temperature ( ºC ) |
0-250 |
|||||||
|
Filter Bag Size ( mm ) |
φ178X813/φ178X720(HiSEP) |
|||||||
|
Filter Area ( ) |
1.0/2.0 |
1.5/3.0 |
2.0/4.0 |
2.5/5.0 |
3.0/6.0 |
3.5/7.0 |
4.0/8.0 |
4.5/9.0 |
|
Filtration Rate ( μm ) |
1-2000 |
|||||||
|
Housing Material |
304/316L/CS |
|||||||
|
Support Legs, Bolts & Nuts Material |
NBR(Standard)/VITON(FKM)/Silicone Rubber/PTFE(VMQ)/PTFE |
|||||||
|
Seal Material |
Sandblasting Sub-light |
|||||||
|
Outside Surface Finish |
Sandblasting Sub-light |
|||||||
|
Inside Surface Finish |
120Mesh Polishing(Standard),Food Grade Polishing ,Halar Coating, PA11 Coating |
|||||||
|
Standard Connection |
Flange HG20592-2009(Compatible DIN) |
|||||||
|
Optional Connection |
Flange HG20615-2009(Compatible ANSI),NPT,ISO Standard Sanitary Clamp |
|||||||
|
Inlet and Outlet Size |
DN50 |
|||||||
*Above parameters only for reference, customized available for detailed requirements
